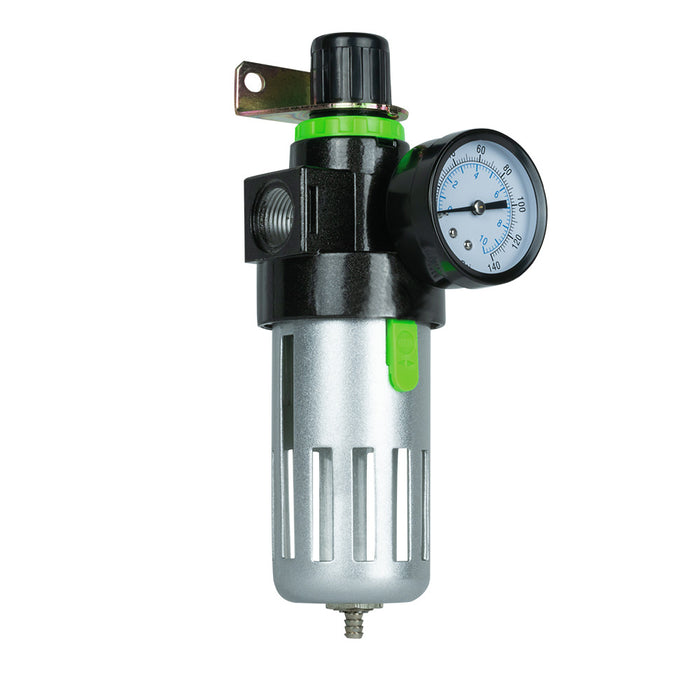

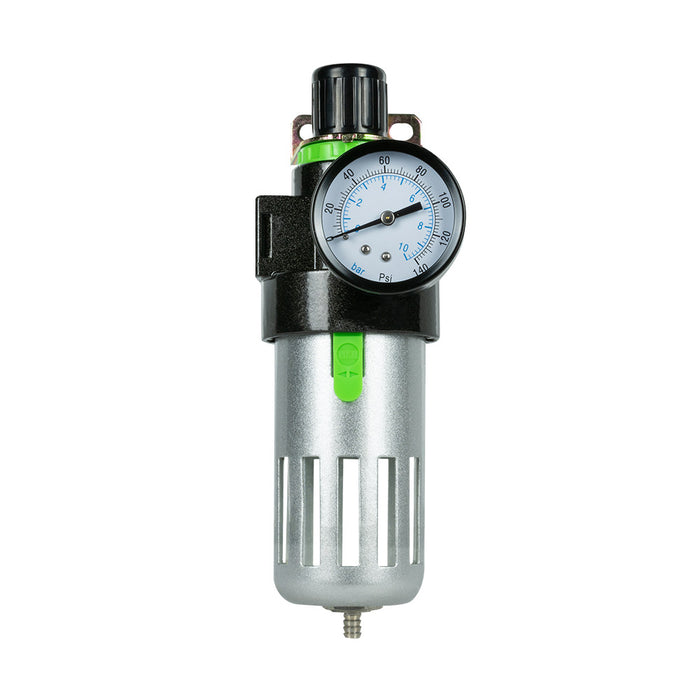

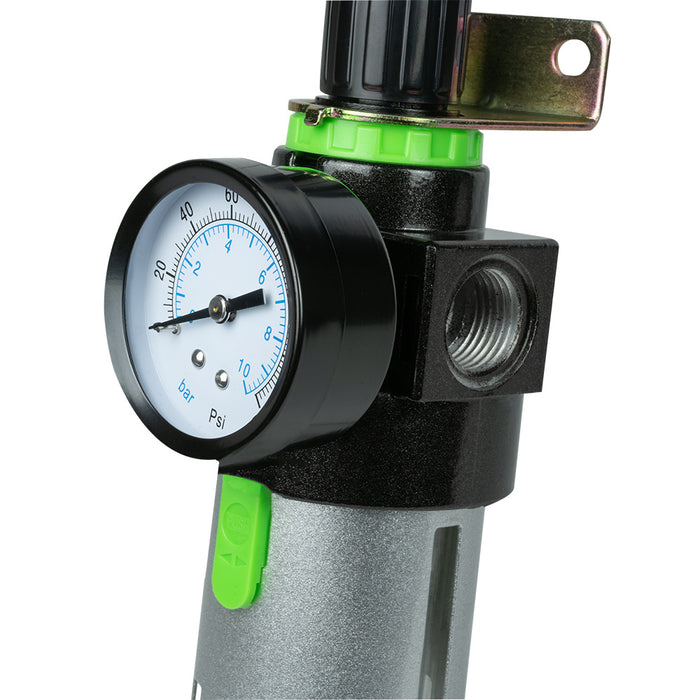

3/8" AIR FILTER AND REGULATOR

Air inlet 3/8"
Maximum pressure 9.5 BAR
Working temperature 5 – 50 °C
Weight 0.63 kg
Dimensions (LxWxH) 265x80x80 mm

Ideal for pneumatic applications, this assembly ensures a supply of clean, precisely regulated compressed air. It helps protect equipment by removing impurities and controlling working pressure, which improves system performance and extends the service life of pneumatic components. Its compact and efficient design makes it a reliable solution for industrial and professional installations.

Technical specifications:

· Fluid type: Compressed air

· Maximum operating pressure: 9.5 bar (135 psi)

· Adjustable outlet pressure range: 0.5 – 8.5 bar (5–125 psi)

· Operating temperature range: 5 – 50 °C

· Air connections: G 3/8"

· Condensate bowl capacity: 150 ml

· Condensate bowl material: Polycarbonate
