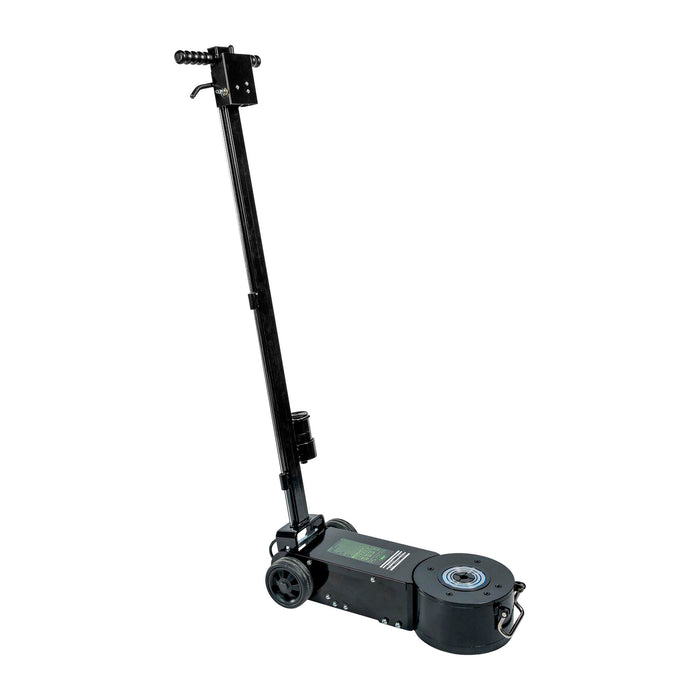

TELESCOPIC AIR-HYDRAULIC JACK 15/25/40T

Capacity 15/25/40T
Minimum height 125mm
Maximum height 185-240-301mm
Compliance with European directive ENISO12100, EN1494

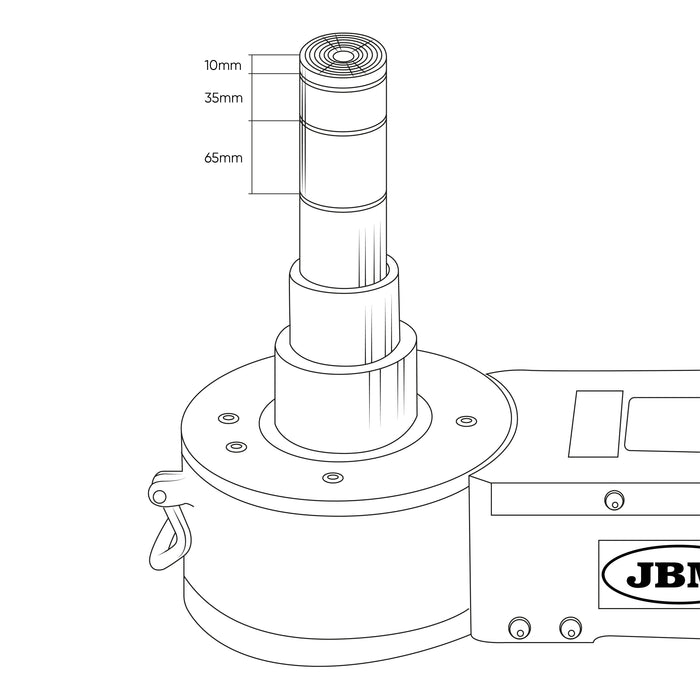

Adapters 35-65mm
Air inlet 1/4"
Working pressure 7-10BAR
Actual air consumption 9.5CFM
Weight 38.70kg

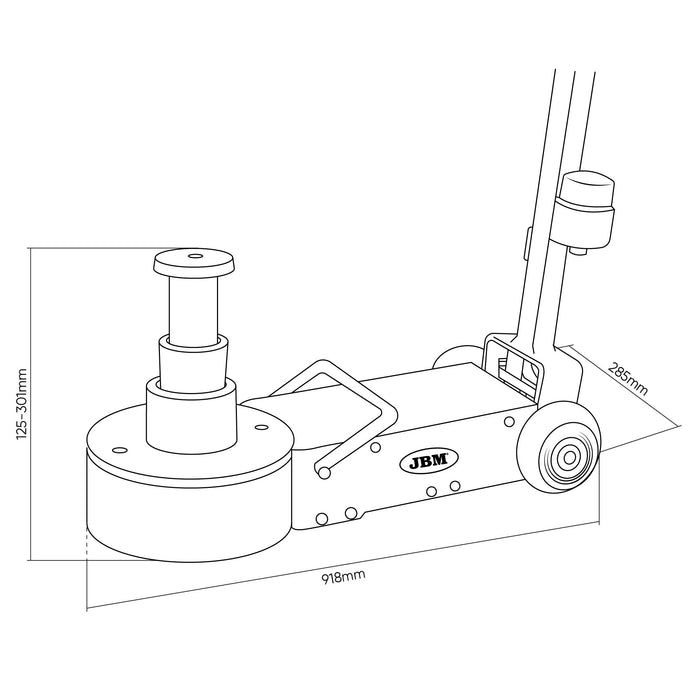

Dimensions (LxWxH) 918x285x1195mm

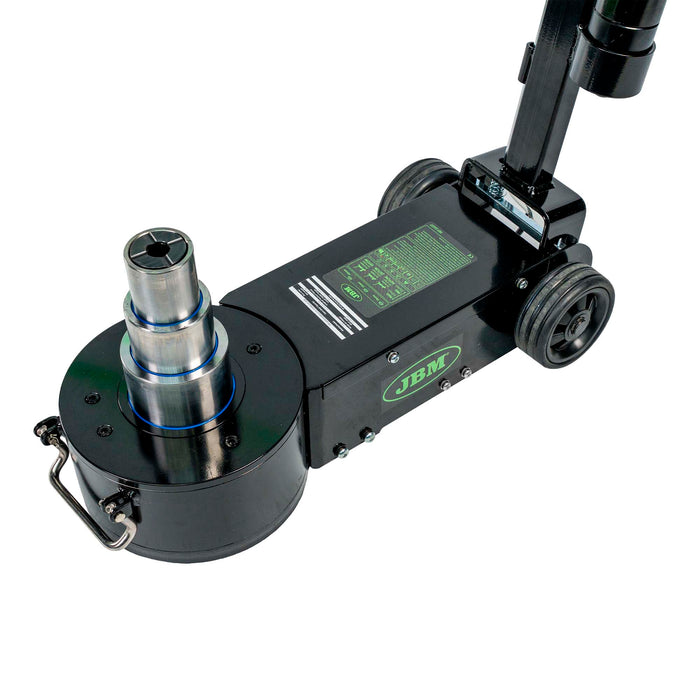

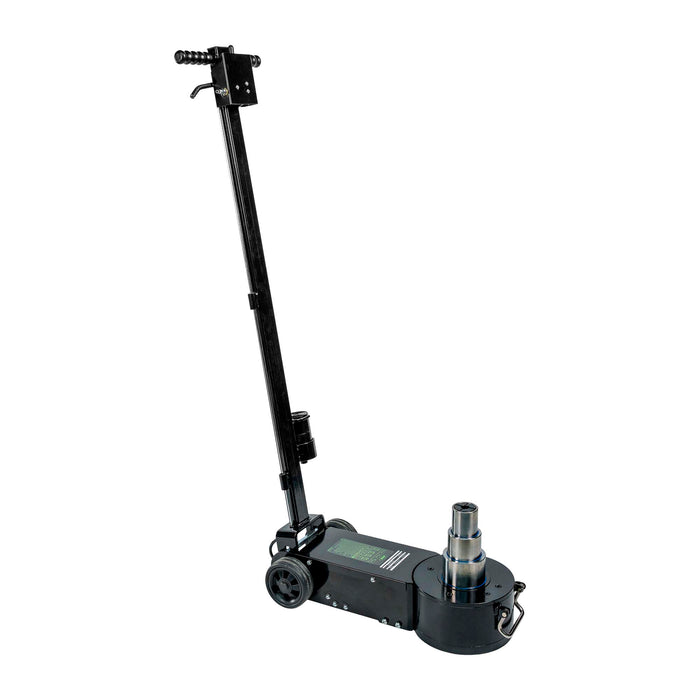

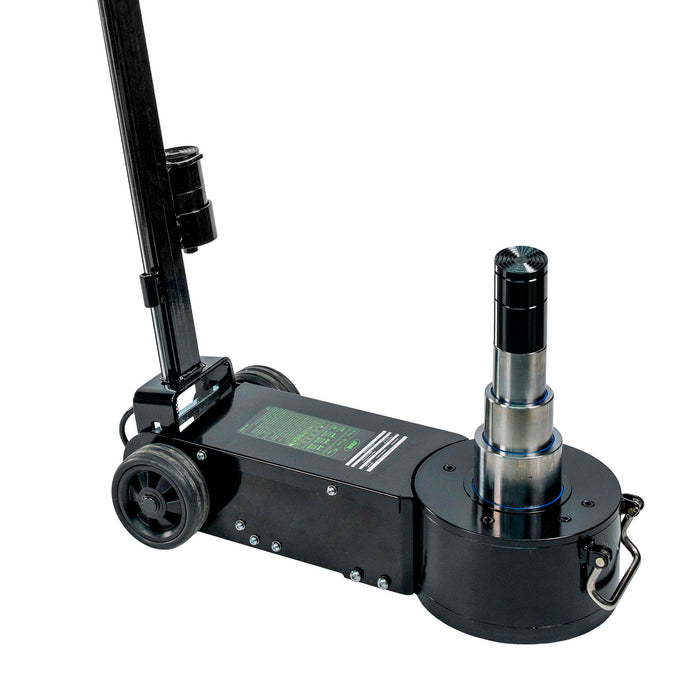

This pneumatic jack is designed for lifting heavy machinery. It features three heights; the first piston lifts to a height of 185mm with a maximum capacity of 40 tons, the second lifts from 185mm to 240mm with a maximum capacity of 25 tons, and the third piston lifts from 240mm to a maximum height of 301mm.

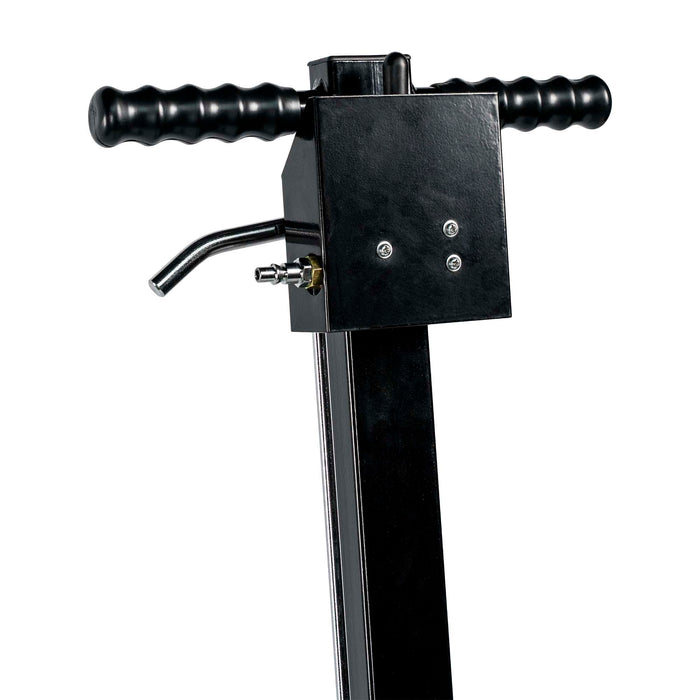

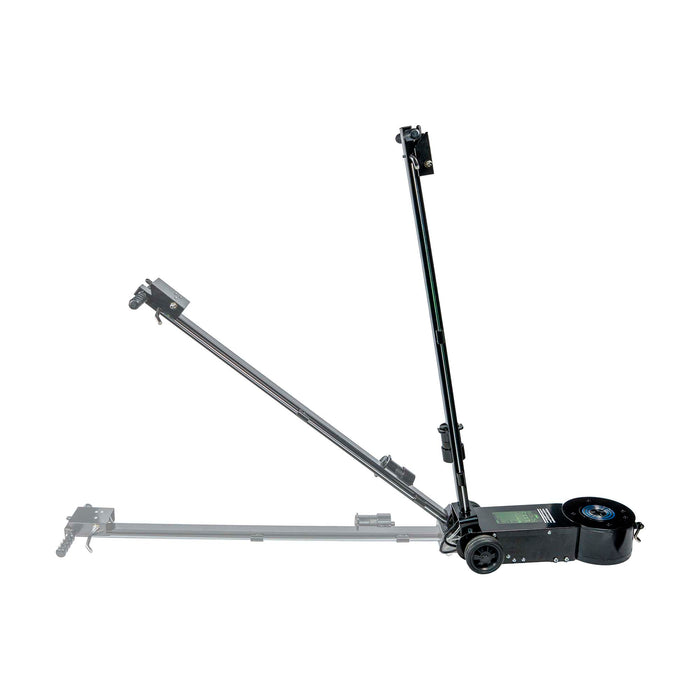

Thanks to its movable handle that reclines up to 180°, you can position the jack at multiple support points.
It features an air flow control valve that makes the lifting operation simple and fast.
