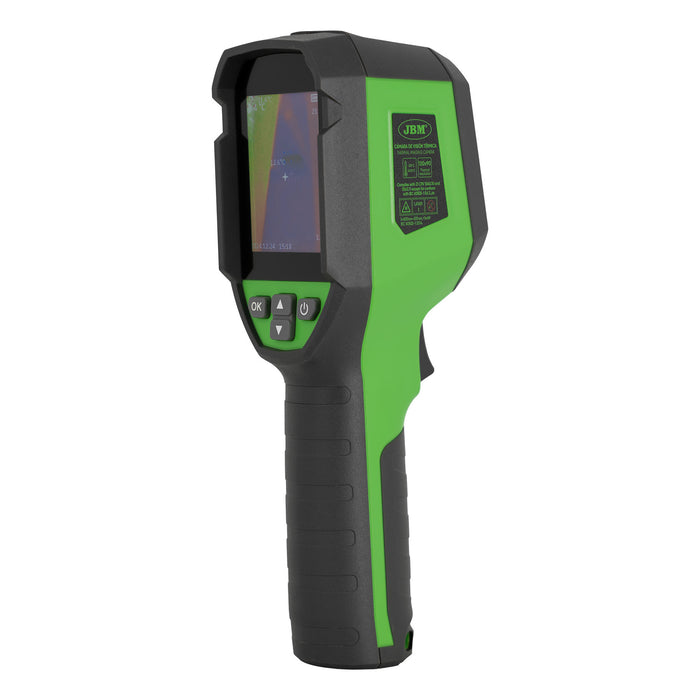

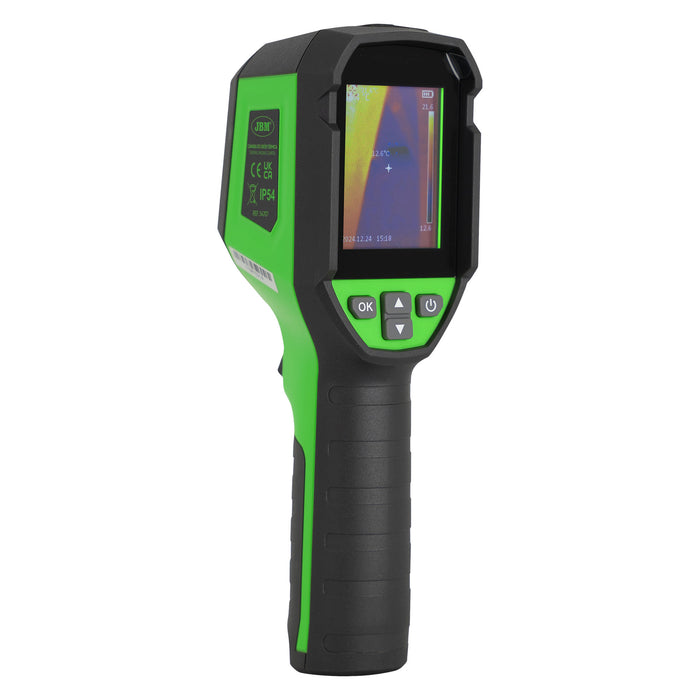

THERMAL VISION CAMERA

Screen 2.4" TFT LCD
Resolution 320x240px
Emissivity 0.01~0.99
Accuracy ±2°C
Range -20/400°C
Focal distance 0.1m
Display 6 Filters
Battery Li-ion 3.7V/2600mAh 18650
Charging port USB-C
Weight 0.31kg

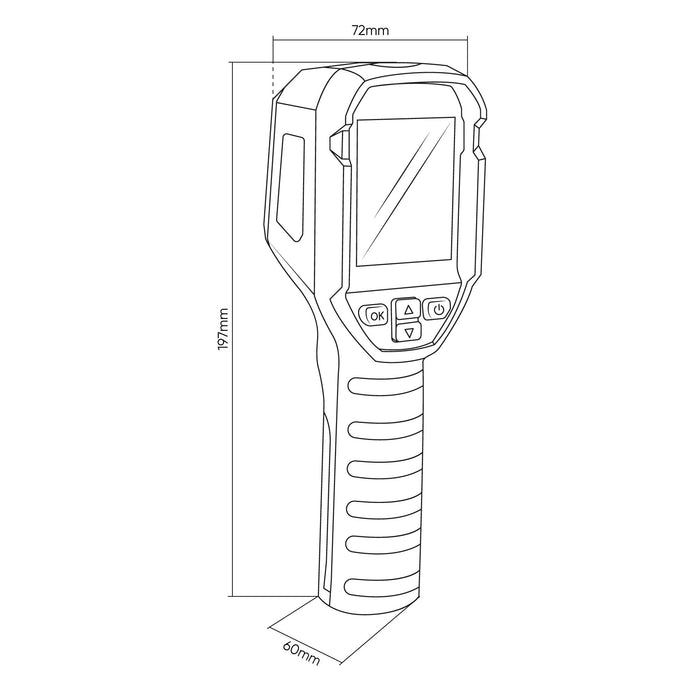

Dimensions (LxWxH) 197x72x60mm

- Allows for the detection and visualization of temperature differences in a scene, displaying hot and cold areas with different colors.
- The camera is especially suitable for preventive and corrective maintenance, inspection in complex situations with multiple components in contact, as well as detecting different heat points in settings with smoke or low visibility.
- Includes the function to capture and store images for later inspection.

This design integrates different color palettes that allow us to identify temperatures more easily:

· RAINBOW: Each color represents a specific temperature range, which facilitates the quick identification of critical points or anomalies in various applications, such as industrial inspections and electronic troubleshooting.
· LAVA: Visualization of extreme temperatures; intensifies warmer temperatures with reds and oranges.
· IRON: Combining warm colors like red and yellow with cooler tones like blue and purple, this palette improves the visibility of temperature variations.
· WHITE HOT - BLACK HOT: Represents variable temperatures in shades of gray. As temperatures rise or fall, the intensity of the grayscale changes. This palette serves as a basis for more complex color schemes and finds applications in industries that require precise temperature differentials.
