TIRE CHANGER WITH AUTOMATIC TILTING COLUMN 220V

Power supply 220V
Power 0.75kW
Working pressure 8-10BAR
Maximum torque 1078Nm
Maximum wheel diameter 10-24"
Noise level 75dB
Weight 233.00kg
Dimensions (LxWxH) 880x435x1880mm

Equipped with a hexagonal pressure bar, the pneumatic vertical arm automatically positions the mounting head over the rim, incorporating a pneumatic locking system and automatic positioning for greater precision and safety.

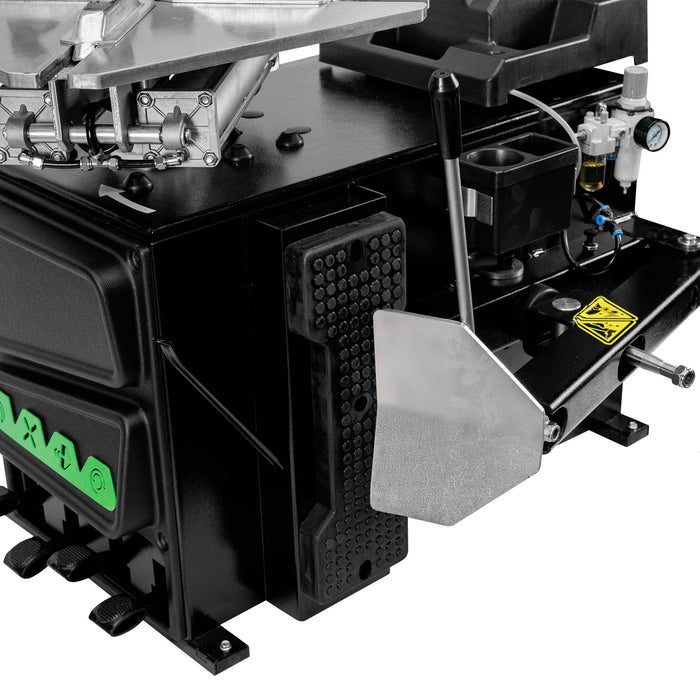

Features robust and durable cast monoblock claws, designed for a long service life even under intensive use conditions.

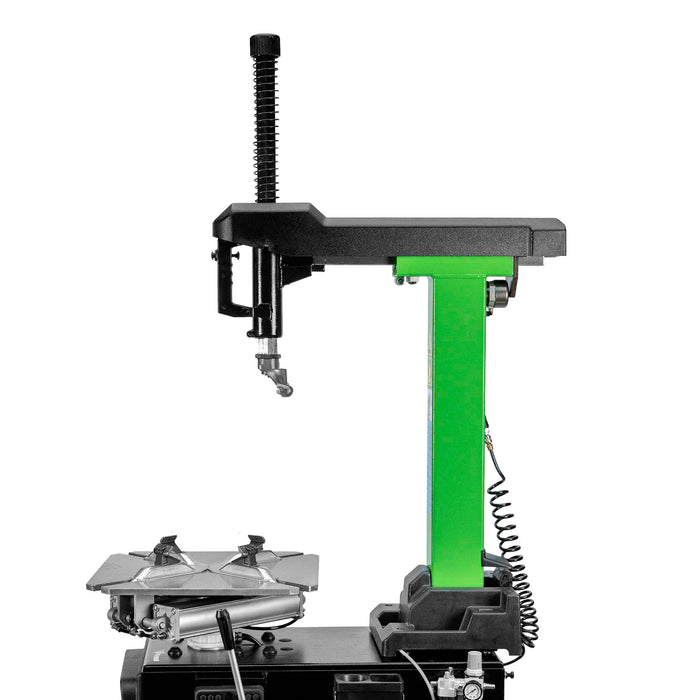

Tilting tower: saves time on head adjustment thanks to automatic, precise, and safe alignment. Its tilting design, with pneumatic locking and an automatic positioning system, facilitates the operator's work and improves efficiency.

TECHNICAL SPECIFICATIONS:

· Required air pressure: 10 bar (116–145 psi)

· Motor power: 0.75kW

· Net / gross weight: 210 / 234 kg (462 / 515.8 lbs)

· Packing dimensions: 960 × 760 × 800 mm (3.1 × 2.5 × 2.6 ft)

· Maximum tire width: ≤355 mm (14")

· Maximum tire diameter: <1000 mm (39")

· Internal clamping for 12" to 24" wheels

· External clamping for 10" to 21" wheels

Plastic rim protectors are not included
