22T AIR-HYDRAULIC TROLLEY JACK

Capacity 22T
Minimum height 228mm
Maximum height 548mm
Adapters 20-60-90mm
Air inlet 1/4"
Working pressure 7-10BAR
Actual air consumption 9.5CFM
Extendable 110mm
Weight 44.00kg
Dimensions (LxWxH) 1390x575x322mm

This hydropneumatic jack allows for lifting loads of up to 22 tons to a height of up to 548mm (using the adapters). It features various handle positions to increase versatility and facilitate its insertion into more complex spaces.

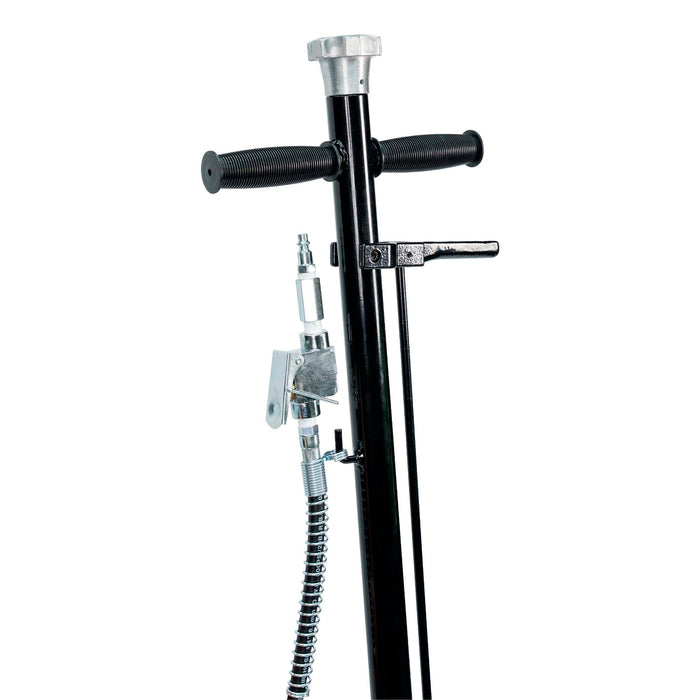

Its top control handle makes using the jack a quick and simple operation.
