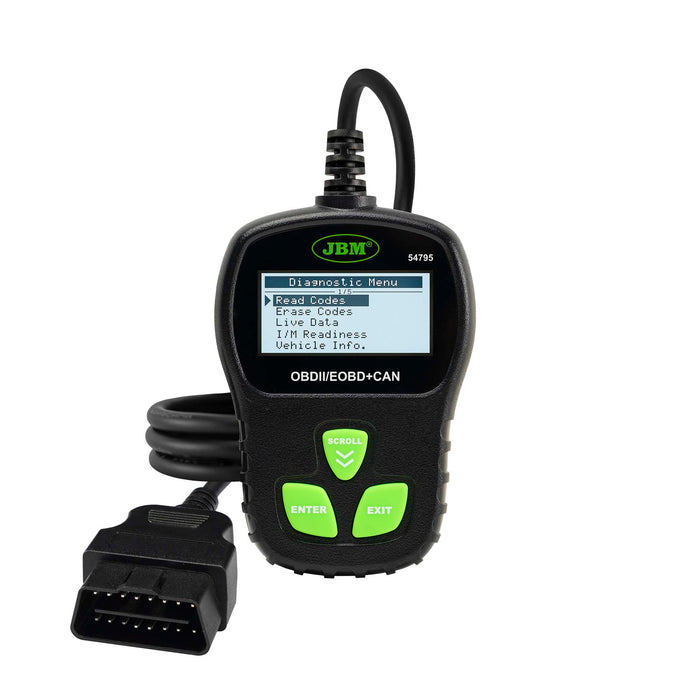

OBD II/EOBD MULTI-BRAND DIAGNOSTIC SCANNER FOR VEHICLES
Product description
Display 128x64px
Operating temperature 0~60°C (32~140°F)
Power supply 8.0~18.0V

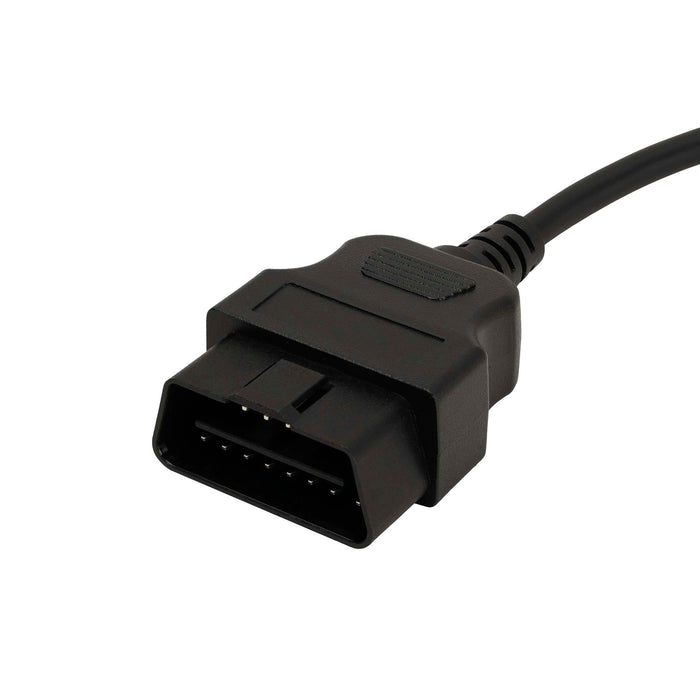

Connectors OBD II
Dimensions (LxWxH) 108x74x20mm
Weight 0.35kg
Multilingual diagnostic system. Works on most 2000 and later OBDII compliant vehicles in the US, Europe, and Asia, supporting OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO141, and KWP 2000.
ADVANTAGES:
✓ Code reading.
✓ Live data.
✓ Vehicle information.
✓ Clear codes.
✓ Inspection and maintenance.
✓ Languages: ES, EN, FR, DE, PT, GR.
TECHNICAL SPECIFICATIONS:
· 128x64 pixel backlit display with contrast adjustment.
· Operating temperature: 0 to 60°C (32 to 140°F).
· Storage temperature: -20 to 70°C (-4 to 158°F).
· External power: 8.0 to 18.0V power provided via vehicle battery.
· Length: 108mm.
· Width: 74mm.
· Height: 20mm.
· Weight: 0.35kg.
