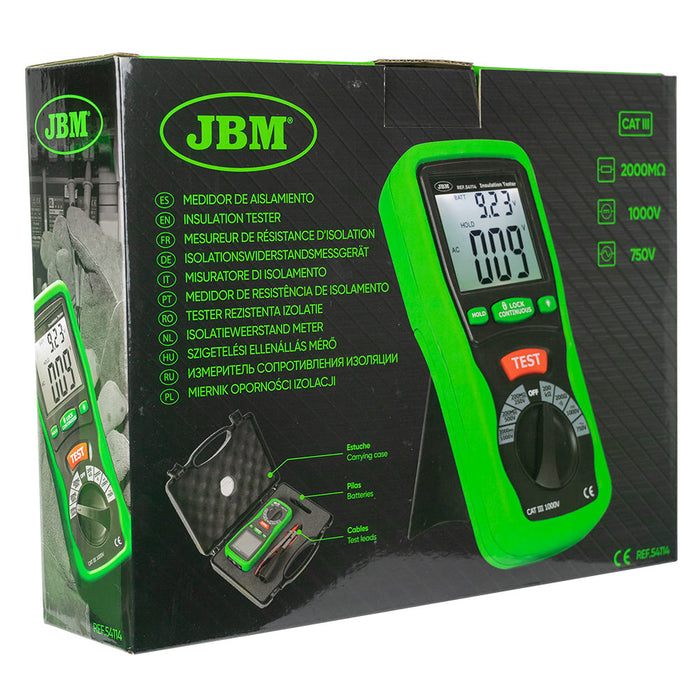

INSULATION TESTER

Voltage AC / DC
AC voltage measurement 0-750V
DC voltage measurement 0-1000V
Resistance measurement (Ω) 0-200Ω, 200-2000Ω, 0-200mΩ, 200-2000mΩ
Operating environment 0°C/40°C
Storage environment -10°C/60°C
Battery 6 AA Batteries
Measurement category CAT III
Installation category 2
Weight 1.48kg
Dimensions (LxWxH) 200x92x55mm

Electrical insulation resistance meter with test voltages of 250 V, 500 V, and 1000 V. Allows checking the integrity of electrical circuits and verifying the insulation of components relative to the chassis, especially in electric and hybrid vehicles. Also ideal for industrial insulation inspections in accordance with the DIN VDE 0105-100:2009-10 standard.

Specifications:

· Installation category: 2

· Measurement category: CAT III

· Maximum altitude: 2000 m

· Display: LCD with dual readout

· Power supply: DC 9 V (6 x 1.5 V AA batteries)

Measurement ranges:

· AC voltage: 0 – 750 V

· DC voltage: 0 – 1000 V

· Resistance: 0 – 200 Ω / 200 – 2000 Ω

· Insulation resistance: 0 – 200 MΩ / 200 – 2000 MΩ

Operation:

· Sampling rate: 2.5 readings/second

· Zero adjustment: Automatic

Environmental conditions:

· Operating temperature: 0 °C – 40 °C (RH < 80 %)

· Storage temperature: -10 °C – 60 °C (RH < 70 %)
