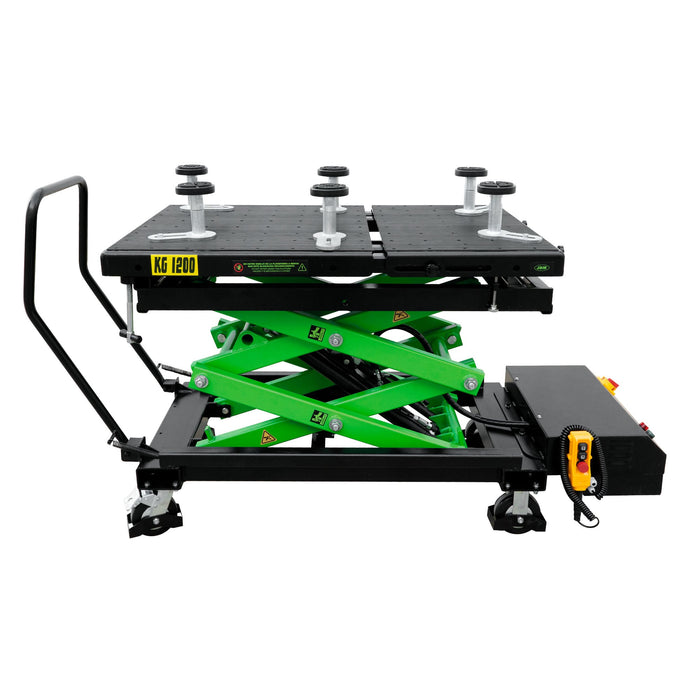

HYDRAULIC LIFT TABLE FOR ELECTRIC VEHICLE BATTERIES 1200KG
Product description
Voltage 220V
Capacity 1200kg
Maximum lifting height 1840mm
Minimum lifting height 650mm
Platform dimensions 1290x768mm
Extended platform dimensions 1400x768mm
Lifting time (unloaded) 24s
Lowering time (unloaded) 140s
Includes support Yes
Weight 418.00kg

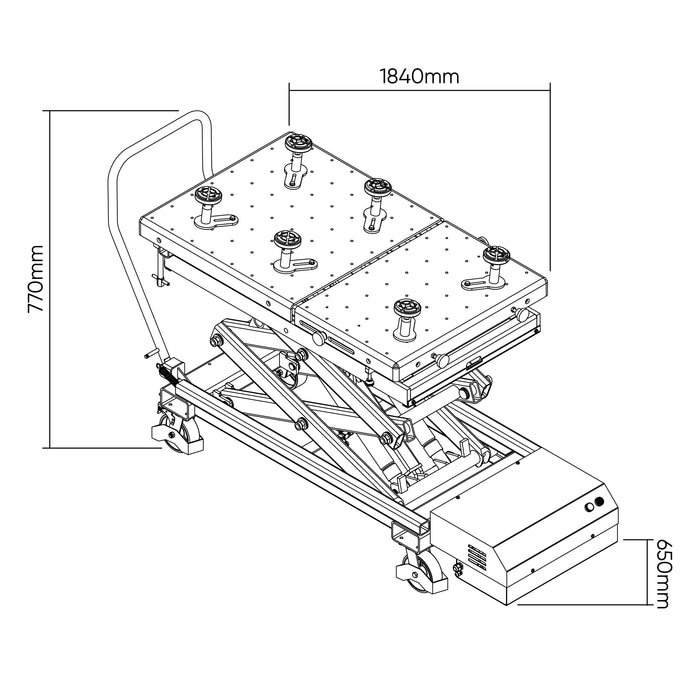

Dimensions (LxWxH) 1840x770x650mm

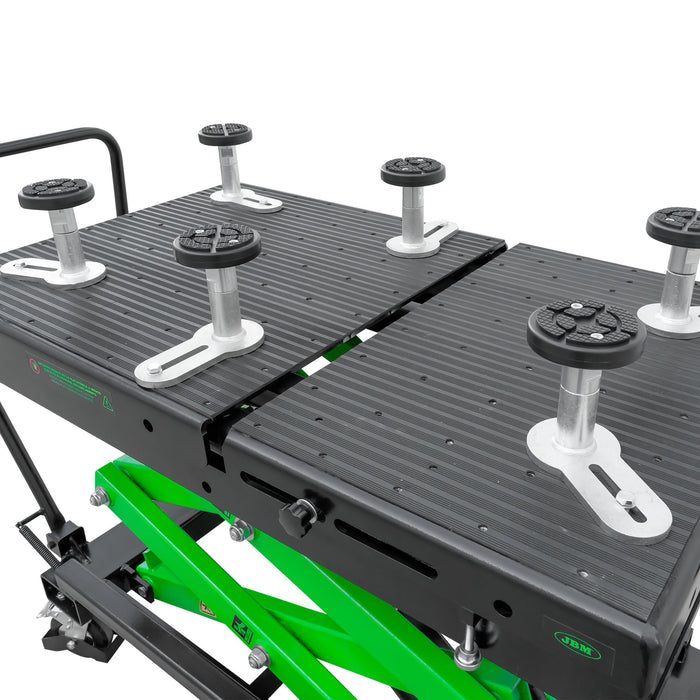

It features 6 electrically insulated rubber blocks that allow you to work safely with electric vehicle batteries.
The height of each of these blocks can be adjusted independently.
The platform has several built-in rotary knobs that allow you to adjust the height very precisely.
If necessary, you can extend the length of the platform. Additionally, it operates with two cylinders to provide faster raising and lowering.
Regarding safety, on one hand, it has safety teeth that prevent the platform from falling suddenly. On the other hand, it has an automatic protection system that prevents exceeding the maximum permitted lift height.
