PROMO-53981 MMA INVERTER WELDER 100A DC + WELDING HELMET WITH MANUAL ADJUSTER
Product description
Contains
- 53981 · 100A DC MMA INVERTER WELDER
- 53414 · WELDING HELMET WITH MANUAL REGULATOR
53981 · 100A DC MMA INVERTER WELDER
Voltage 230V
Frequency 50Hz
Power 3.7KVA
Intensity 16A
No-load voltage 65V
Maximum output voltage 24V
Duty cycle 15%
Power factor 0.7
Efficiency 85%
Electrode 1.0 - 3.2mm
Insulation class F
Protection class IP21S
Weight 3.35Kg
Dimensions (LxWxH) 200x80x130mm
This tool is designed for welding steel and iron with all types of acid and basic electrodes.
Advantages
✓ Small size, lightweight, and energy-saving.
✓ Good arc start and force, stable arc, and minimal spatter.
✓ High weld quality, deep penetration.
✓ Automatic protection against overvoltage, overcurrent, and overheating.
✓ IGBT technology greatly improves reliability.
✓ Can automatically balance when the input voltage fluctuates.

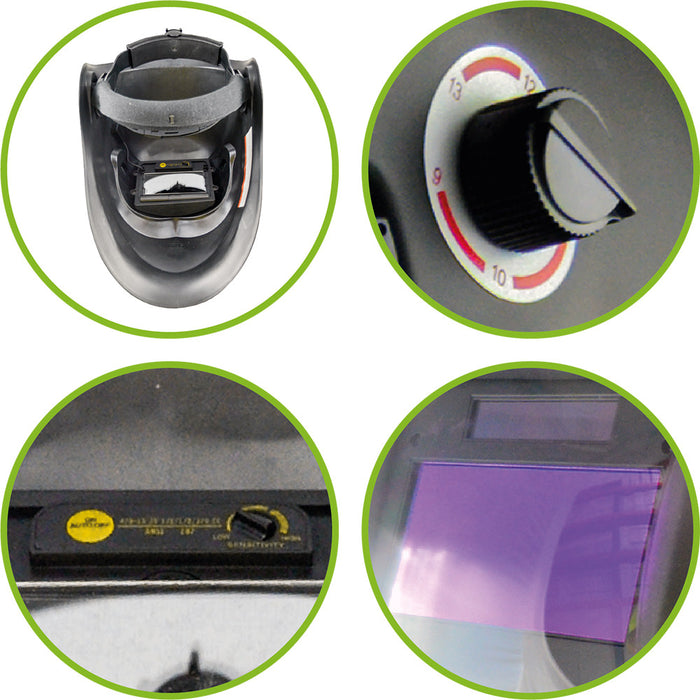

53414 · WELDING HELMET WITH MANUAL REGULATOR
Screen 92.5x42.5mm
Intensity regulation Dark shade regulation
Weight 0.53Kg
Analog sensitivity and darkening regulator.
Features:
· With auto-darkening visor
· Sensitivity control: Internal adjustment
· Switching time: Light-dark: 1/10,000s.
· Delay time: Dark-light: 0.1 - 0.8 sec.
- Viewing field: 92.5x42.5mm (3.64x1.67in)
· Shade control:
- Dark states: DIN 8.5-12.5
- Light states: DIN 4.5
· UV-IR Protection: Up to shade DIN16 at all times
· Operating temperature: -5ºC ± 55ºC
· Power source: Solar cell batteries + 1 lithium battery
