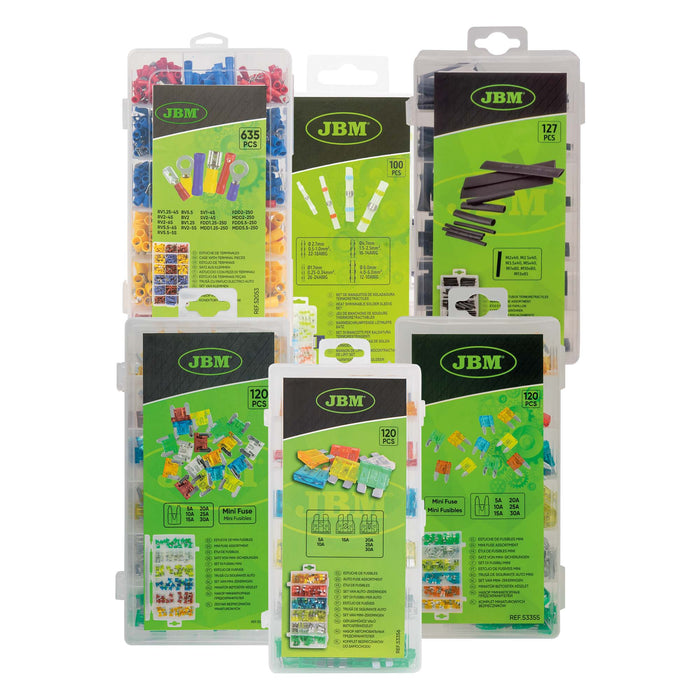

SPECIAL ELECTRICITY PROMOTION

Contains

• 52053 · TERMINAL KIT 635PCS
• 53355 · MINI FUSE KIT 120PCS
• 53356 · FUSE KIT 120PCS
• 53374 · BLACK HEAT SHRINK TUBING KIT 127PCS
• 53380 · MINI FUSE KIT 120PCS
• 53992 · HEAT SHRINK SOLDER SLEEVE SET 100PCS

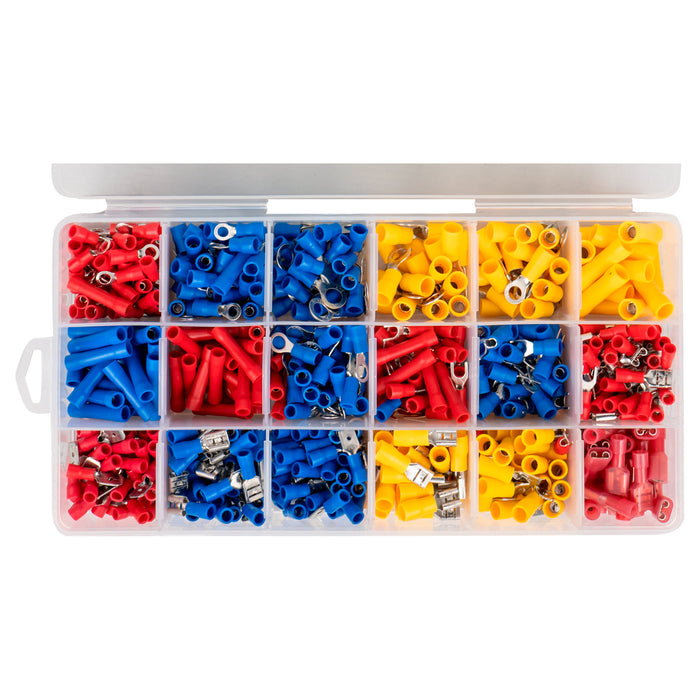

52053 · TERMINAL KIT 635PCS

Pieces 635
Material BR
Weight 0.55kg
Dimensions (LxWxH) 230x120x40mm

Ref. MEASUREMENTS:

10885 - RV1.25-4S:50u

10886 - RV2-4S:50u.

10887 - RV2-6S:30u.

10888 - RV5.5-6S:20u.

10889 - RV5.5-5S:20u

10890 - BV5.5:15u.

10891 - BV2:25u.

10892 - BV1.25:30u.

10893 - RV2-5S:40u.

10894 - SV1-4S:50u.

10895 - SV2-4S:40u.

10896 - FDD1.25-250:45u.

10897 - MDD1.25-250:50u.

10898 -FDD2-250:40u.

10899 - MDD2-250:50u.

10900 - FDD5.5-250:25u.

10901 - MDD5.5-250:30u.

10902 - FDFN1.25-250:25u.

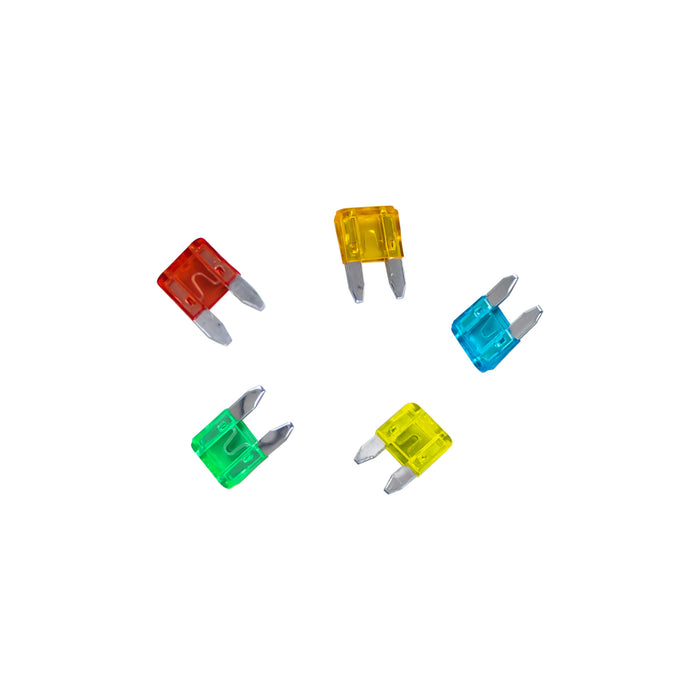

53355 · MINI FUSE KIT 120PCS

Pieces 120
Material Zn
Weight 0.15kg
Dimensions (LxWxH) 210x110x28mm

53356 · FUSE KIT 120PCS

Pieces 120
Material Zn
Weight 0.25kg
Dimensions (LxWxH) 210x110x28mm

The kit contains:

· x20 pcs - Ref.10915 - Fuse 5A

· x20 pcs - Ref.10917 - Fuse 10A

· x20 pcs - Ref.10918 - Fuse 15A

· x20 pcs - Ref.10919 - Fuse 20A

· x20 pcs - Ref. 10920 - Fuse 25A

· x20 pcs - Ref. 10921 - Fuse 30A

53374 · BLACK HEAT SHRINK TUBING KIT 127PCS

Pieces 127
Material PE
Weight 0.15kg
Dimensions (LxWxH) 210x110x28mm

127 PCS:

M2x40 (30pcs)

M2.5x40 (25pcs)

M3.5x40 (20pcs)

M5x40 (20pcs)

M7x80 (16pcs)

M10x80 (8pcs)

M13x85 (8pcs)

53380 · MINI FUSE KIT 120PCS

Pieces 120
Material Zn
Weight 0.15kg
Dimensions (LxWxH) 210x110x28mm

120 PCS

5A (20pcs)

10A (20pcs)

15A(20pcs)

20A (20pcs)

25A (20pcs)

30A (20pcs)

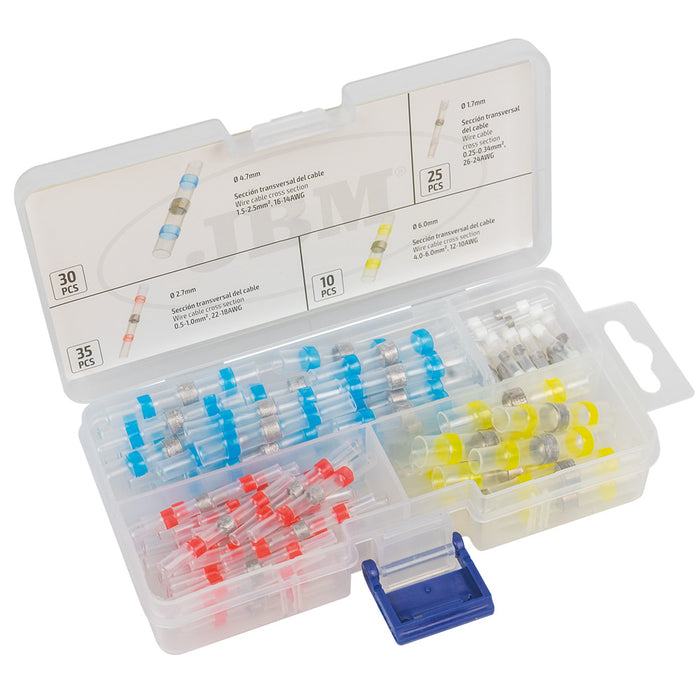

53992 · HEAT SHRINK SOLDER SLEEVE SET 100PCS

Pieces 100
Material PE
Weight 0.10kg
Dimensions (LxWxH) 137x67x27mm

Allows for quick and easy cable connection, soldering and sealing by placing the wires in the solder sleeve for subsequent heat application.

Material: PE

Color: red, blue, white, yellow

Solder ring material: tin

Case dimensions: 13.7x6.7x2.7cm

Includes:

35 red connectors

- Diameter: 2.7mm

- Cable cross-section: 0.5-1.0mm^2, 22-18AWG

30 blue connectors

- Diameter: 4.7mm

- Cable cross-section: 1.5-2.5mm^2, 16-14AWG

25 white connectors

- Diameter: 1.7mm

- Cable cross-section: 0.25-0.34mm^2, 26-24AWG

10 yellow connectors

- Diameter: 6.0mm

- Cable cross-section: 4.0-6.0mm^2, 12-10AWG
