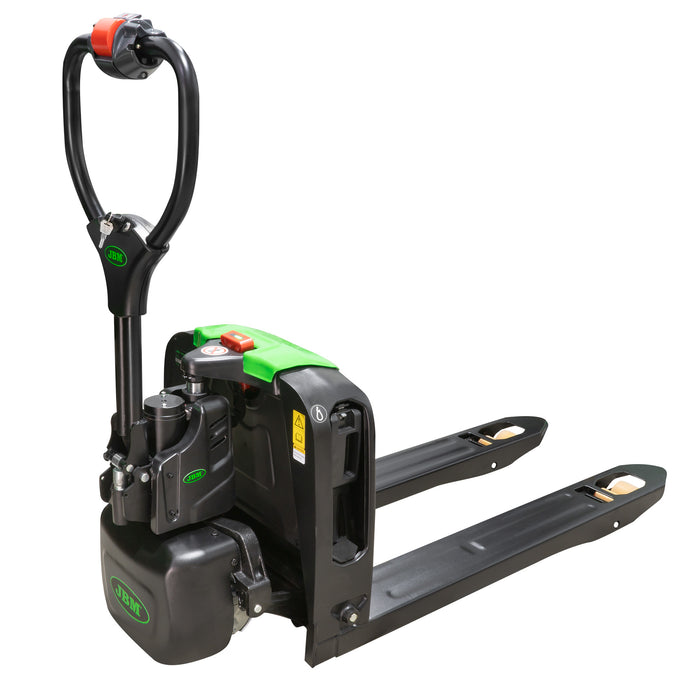

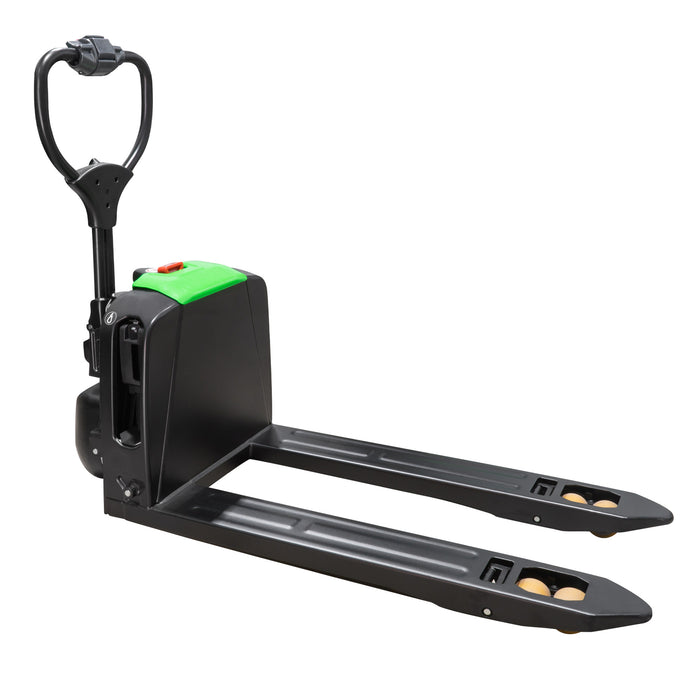

ELECTRIC PALLET TRUCK 1500KG

Capacity 1500kg
Minimum lifting height 85mm
Maximum lifting height 190mm
Turning radius 1360mm
Travel speed (with/without load) 4-4.5km/h
Lifting speed (with/without load) 0.017-0.020m/s
Power 0.75kW
Type Electromagnetic brake
Battery type LI-ION
Battery voltage 24V
Battery capacity 20Ah
Charging time 3-4h
Weight 112.00kg
Dimensions (LxH) 1190x1150mm

Pallet truck equipped with an electric motor that allows for the easy transport of palletized goods.

Thanks to its electric motor, heavy loads can be transported without requiring any physical effort from the operator.

TECHNICAL SPECIFICATIONS:

· Battery type: Lithium-ion.

· Drive motor power: 0.75 kW.

· Lifting motor power: 0.5 kW (independent motor).

· Battery weight: 5kg.

· Sound pressure: <74dB(A).

· Steering wheel width: 70mm.

· Fork roller width: 60mm.

· Fork roller material: PU (Polyurethane).

· Fork width: 150mm.

· Fork length: 1150mm.

· Fork height: 55mm.

· Ground clearance: 25mm.

· Tiller height (minimum/maximum): 750/1190mm.

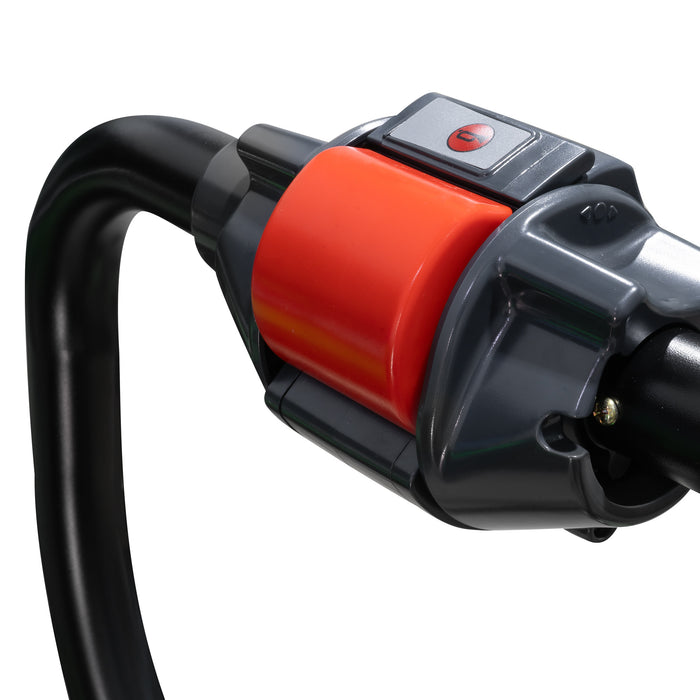

· Lifting system: Electric, controlled from the tiller via button.

· Total width: 590mm.

· Total length: 1550mm.

· Weight: 120kg.
